Quality Control
Our manufacturing operations are inspected, verified and tested by various norms under the IATF16949:2015 requirements. Full-fledged traceability is also our promise to customers.
Strict quality analysis and checks are conducted during and post manufacturing operations. This helps us deliver products a cut above the DIN/ASTM/SAE standards, as well as those that exceed our clients’ specifications.
The Testing and Quality Control Include:
- 100% Material Testing before Production (including Rheometric Analaysis)
- Online statistical process controls for “thickness” and other Special Characteristics defined by Customer
- Time and Temparture Control during Curing and Post-Curing of the Hoses
- Online Dimensional Control during Calendering via Sensors
- 100% Visual Inspection (Final Inspection)
- Dimensional and Destructive (pressure resistance) Tests done as per a Sampling Plan
- Ply-Adhesion (bonding between rubber-rubber and rubber-fabric)
- Full Fledged Traceability (backed up on our ERP system)

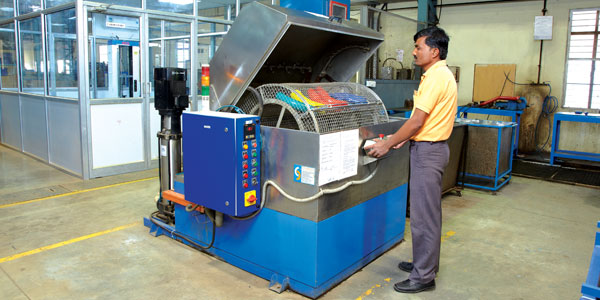

- Life-cycle tests (Pressure cycles while maintaining temperatures upto 220 degrees centigrade inside and outside the hose)
- Burst pressure at elevated temperatures (upto 250 degrees centigrade)
Other test as needed by the customer can also be undertaken, for e.g. Ozone, Thermal Shock, Salt-Spray for metal fittings, Dust Resistance, etc.
- Our Hoses are REACH and ROHS compliant. Furthermore, we confirm that we do not use any Conflict Minerals, and all our suppliers of raw-materials have given us an undertaking to that effect. For REACH compliance, we check internally, all the CAS #s of all our Raw-materials, and make sure they are not any of the SVHCs in the Candidate List.
Our Awards & Recognitions
Our Different Construction Options
Silicone Hose Factory
| Polymer (inner and outer) | Reinforcement Option |
|---|---|
| Silicone | Polyester or Meta-aramid |
| Inner Fluorosilicone, Outer Silicone | Polyester or Meta-aramid |
| Inner FKM/Viton®, Outer Silicone | Polyester or Meta-aramid |
| High-temperature Silicone | Usually Meta-aramid |
| Inner Fluorosilicone, Outer High-temperature Silicone | Usually Meta-aramid |
| Inner FKM/Viton®, Outer High-temperature Silicone | Usually Meta-aramid |
| Inner FEPM/, Outer Silicone | Polyester or Meta-aramid |
| Inner FEPM, Outer High-temperature Silicone | Usually Meta-aramid |
| Abrasion resistant Silicone | Polyester or Meta-aramid |
| Fire-resistant silicone as per EN45545-2 | Polyester or Meta-aramid |
| Marine grade silicone as per SAE J2006-R3 | Polyester or Meta-aramid |
Note*: We also have an intermediate option, that works at temperatures somewhere between our regular Silicone, and our High-temperature Silicone options.
Rubber Hose Factory
| Polymer (inner and outer) | Reinforcement Option |
|---|---|
| EPDM | Polyester or Aramid |
| Peroxide-EPDM | Polyester or Aramid |
| NBR | Polyester or Aramid |
| CR | Polyester or Aramid |
| Inner NBR,Outer CR | Polyester or Aramid |
| Inner NBR, Outer CSM/Hypalon® | Polyester or Aramid |
| AEM/Vamac® | Usually Aramid |
| High-temperature AEM/Vamac® | Usually Aramid |
| Inner Viton®/FKM, Outer AEM/Vamac® | Usually Aramid |
| SBR | Usually Polyester |
| NR | Usually Polyester |
| Anti-static EPDM | Polyester or Aramid |
| Silicone modified EPDM (Blue colour) | Polyester or Aramid |
| HNBR | Usually Aramid |
| ECO | Usually Aramid |
| Inner Viton®/FKM, Outer ECO | Usually Aramid |
| Inner ECO, Outer CR | Polyester or Aramid |
| Inner ECO, Outer CSM/Hypalon® | Polyester or Aramid |
| NBR/PVC | Polyester or Aramid |
| Inner NBR, Outer NBR/PVC | Polyester or Aramid |
Note*: Many hoses from the Silicone Hose and the Rubber Hose factories, can be offered with a steel-wire or plastic-wire ply, if needed.
